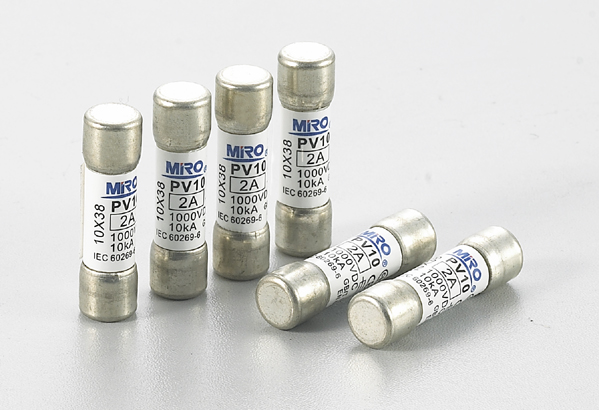

The fused mass made from pure copper strip/wire is packaged inside the fusion tube made from high strength
aluminum oxide.
The fusion tube is filled with chemically-processed high purity quartz sand as arc extinguishing medium.
Firm electric connection between both ends of fused body and the contact cap (inner cover) is made via welding.
The builtin insulation spacer can meet the application of PV fuse system under extreme service conditions and
ensure more stable performance, excellent performance and reliability.

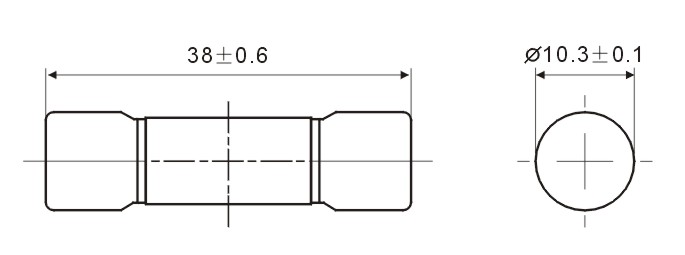

PV10Installation dimensions (mm)

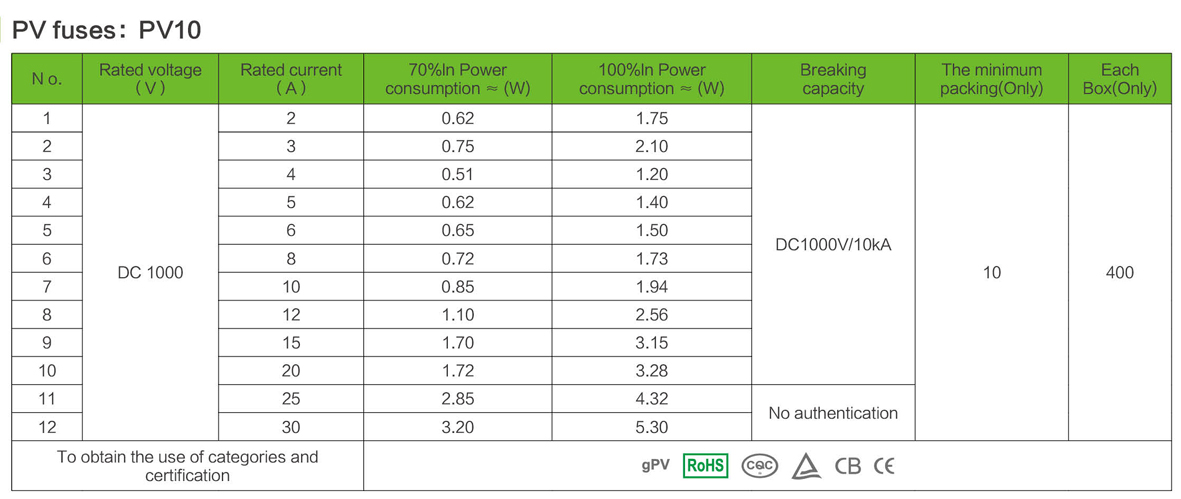

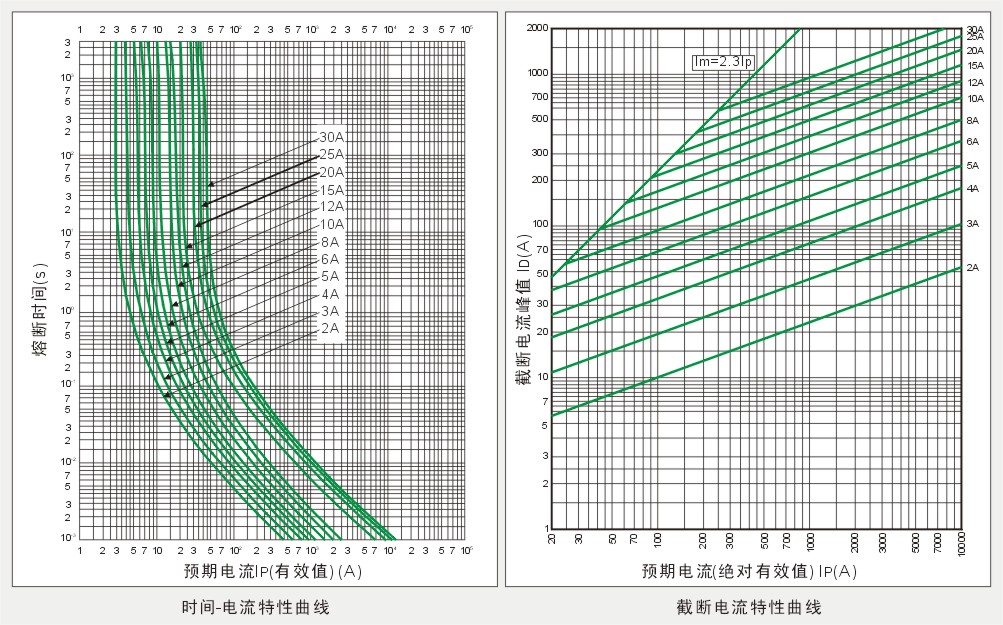

The fuse line products of this series & specifications are provided with full-range（gPV）DC breaking capacity and suitable for the protection of PV module strings and PV array
power system inside the equipment. These products can be used as overload or short
circuit protection in PV power system with DC1000V rated voltage, 2A30A rated current
and DC1000V/10kA rated breaking capacity. These products comply with IEC602696 and
GB/T 13539.6 standard. The dimensions and basic performances of fuse link products
are close to that of similar products at home and abroad. Therefore, they can be used as
replacement for similar types of fuse links in imported equipment.
